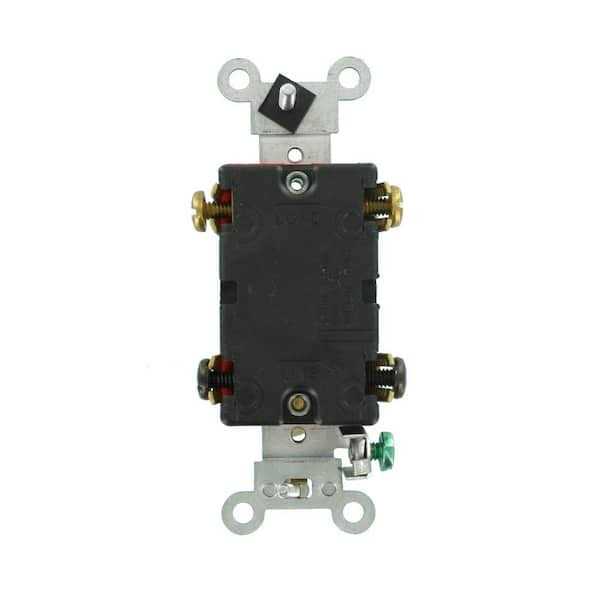

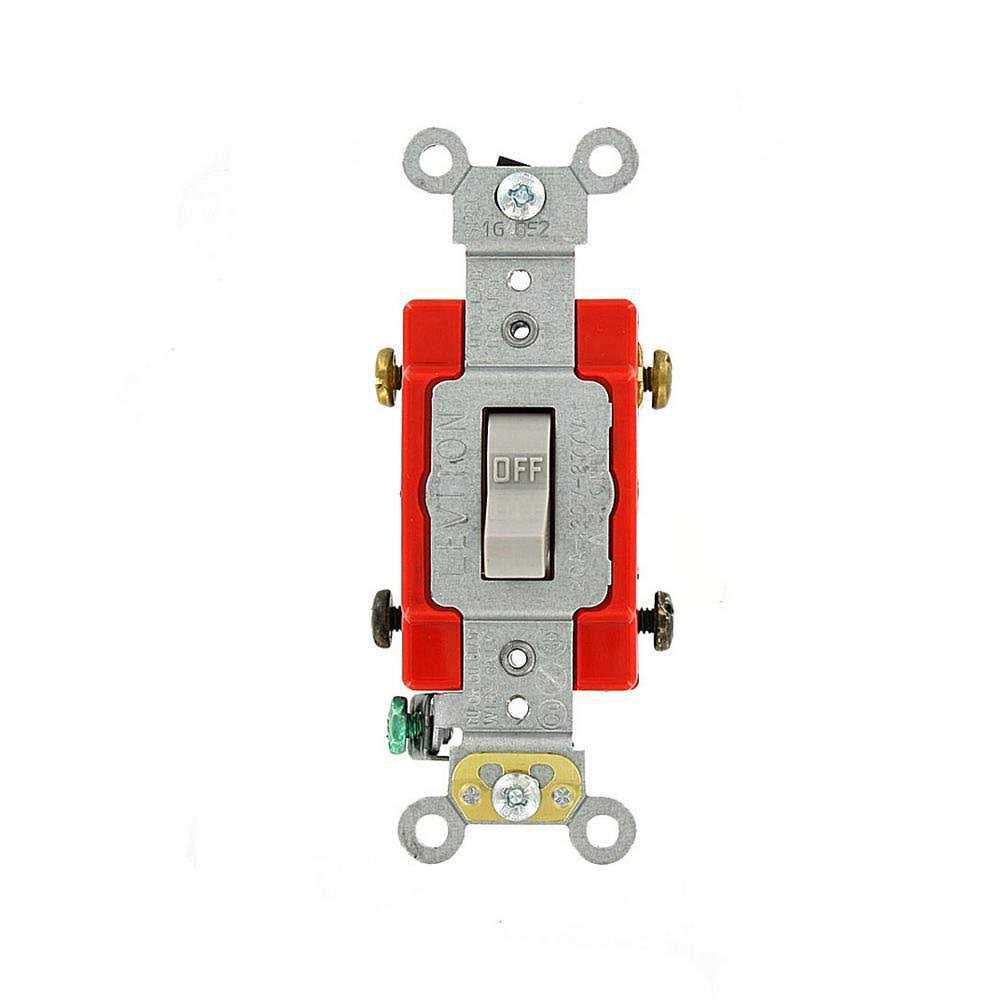

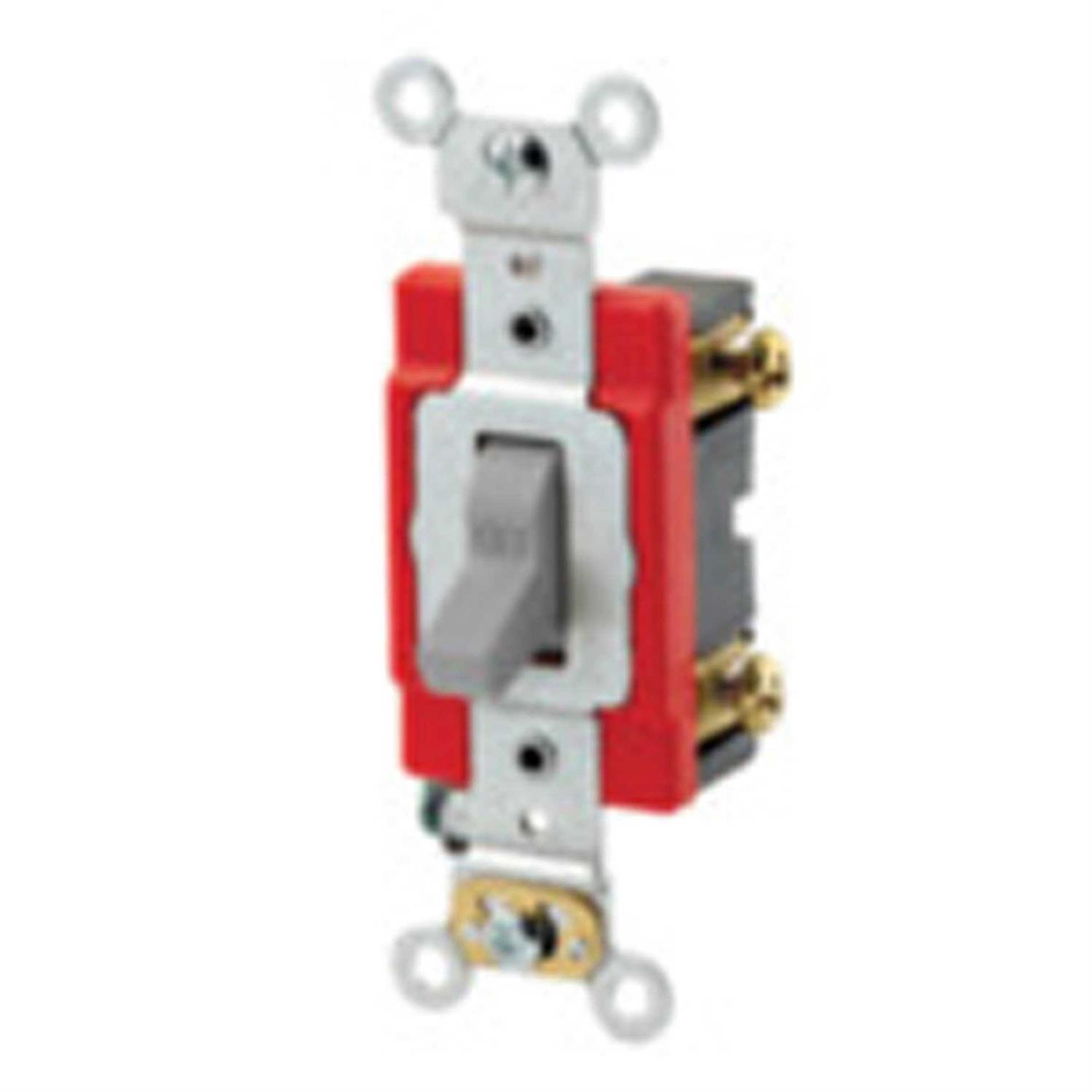

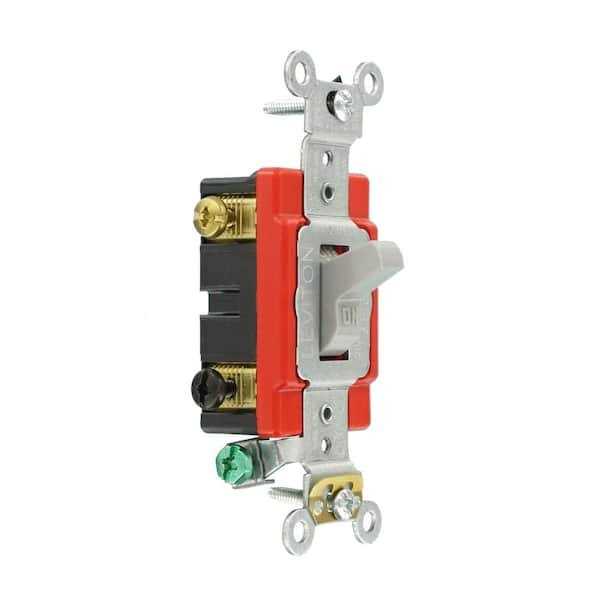

Leviton Double-Pole Toggle Switch 1222-2

Leviton 2-Pole Extra heavy-duty grade AC quiet toggle switch in gray color has power rating 1 hp at 120 VAC, 2 hp at 240 VAC and current rating of 20 Amps. Switch has voltage rating of 120/277 VAC and can withstand up to 1500 Volts for one minute. Switch sustains 100 overload cycles at 4.8 times the rated current and has a minimum endurance of 50000 cycles. The strap is made of 0.048-Inch thick galvanized steel for durability and has a torque range of 12 – 14 Inch-lb. It measures 1.310 Inch x 1.030 Inch x 4.060 Inch. Switch operates at a temperature of -40 to 65 deg C. It has an integrated brass clips for self-grounding. It has polycarbonate toggle for easy operation. Toggle switch has silver alloy contacts to offer good conductivity. Switch has thermoplastic base and cover for added durability. It includes 8-32 brass terminal screws and 8-32 brass-grounding screw for easy, fast installation. It is suitable for several heavy-duty applications. It has flammability rating of V-2 per UL94 to withstand harsh environmental conditions. Switch meets NEMA/ANSI/NOM standards and is UL listed/RoHS compliant.
