Simpson JB210A 2×10 Top Flange Joist Hanger
$3.95

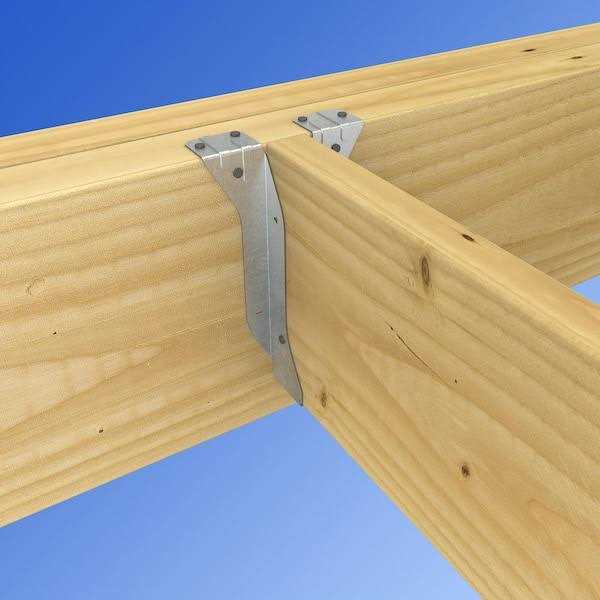

Simpson Strong-Tie JB210A Top Flange Joist Hanger
- Unique two-level embossment provides added stiffness to the top flange
- Nail locations that enable effective use with nailers
- Additional load rating for a 2x or 3x nailer
- Engineered with increased uplift loads for earthquake or high-wind loading
- Seat width: 1-9/16-in
- Nominal joist size: 2×10
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with (6) 0.162-in x 3-1/2-in nails in the header and (2) 0.148-in x 1-1/2-in nails in the joist
Description
The JB hanger is cost effective and features a min/max joist nailing option. Min nailing featuring positive angle nailing targets for moderate load conditions whereas the max nailing generates capacities for higher loads. The unique 2 level embossment provides added stiffness to the top flange. The joist beam hanger cannot be modified. 18-gauge galvanized steel.
