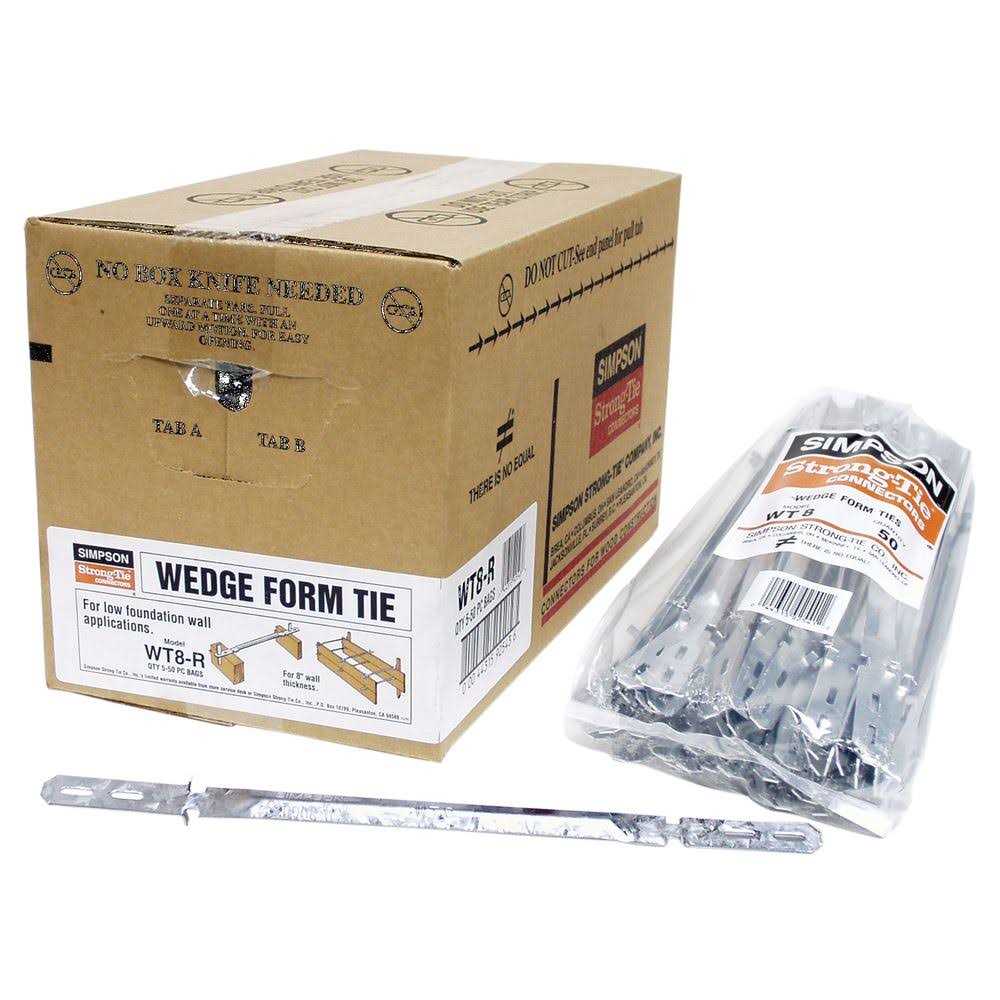

Simpson Strong-Tie Wedge Tie WT8

Simpson Strong-Tie WT8 – Wedge Tie for 2x Formboard, 8″ Thick Walls, 250ctThe wedge tie (WT) is a form tie that secures concrete forms in place while the concrete is poured. It easily installs between form boards and accurately spaces the forms. Several models are available for varying wall thickness and types of form boards. Designed for low foundation wall applications. 5/8″-wide formed “V” design for rigidity allows accurate form spacing and support. Sizes now available for composite form board. 250/ct Material W1 — 14 gauge; WT — 18 gauge Finish Galvanized Installation Two W1 wedges are required for each tie Not recommended for wall pours greater than 4′ high Wall thickness from 6″ to 12″ The spacing of the WTs along the length of the form depends on the depth of the WT in the form. The spacing does not depend on the thickness of the wall. The maximum recommended spacing for WTs used with 1x, 2x and 1 1/4″ thick forms is outlined in the tables below. The tables give spacing guidelines for various form heights and types of form boards. In general, the higher the form is, the closer the spacing of the WTs should be.
